This example demonstrates how to build a Zigbee Gateway device. It runs on a Wi-Fi SoC such as ESP32, ESP32-C3 and ESP32-S3, with an 802.15.4 SoC like ESP32-H2 running ot_rcp to provide 802.15.4 radio.

Hardware Platforms

Wi-Fi based ESP Zigbee Gateway

The Wi-Fi based ESP Zigbee Gateway consists of two SoCs:

An ESP32 series Wi-Fi SoC (ESP32, ESP32-C, ESP32-S, etc) loaded with this example.
An 802.15.4 enabled SoC (e.g., ESP32-H2 or ESP32-C6) loaded with OpenThread RCP example.

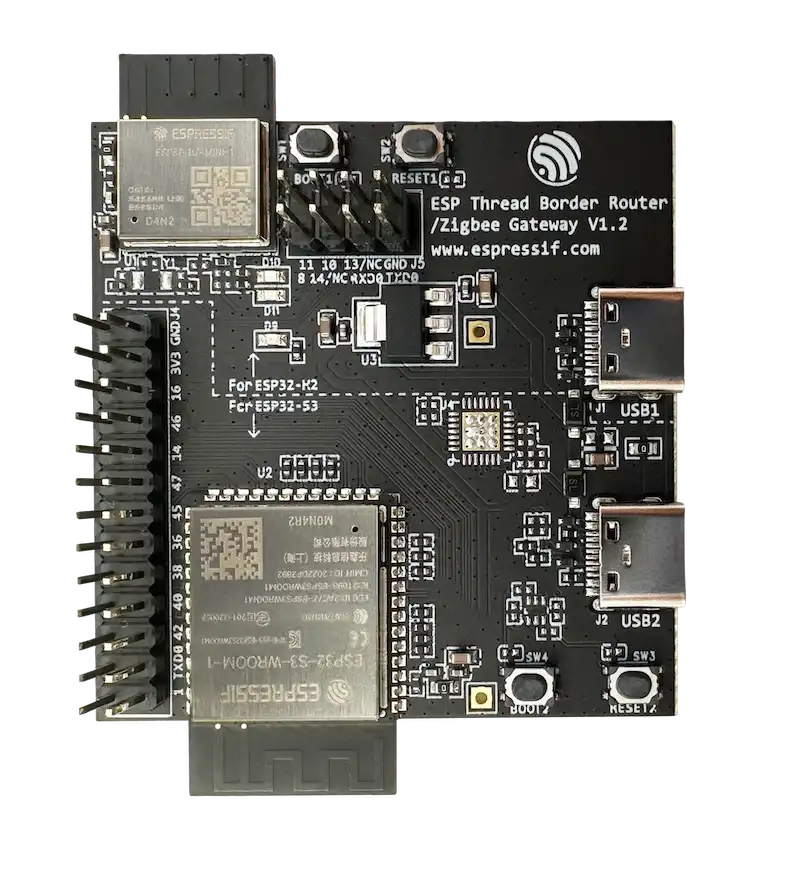

ESP Zigbee Gateway Board

The ESP Zigbee gateway board provides an integrated module of an ESP32-S3 SoC and an ESP32-H2 RCP.

The two SoCs are connected with following interfaces:

UART for serial communication
RESET and BOOT pins for RCP Update
3-Wires PTA for RF coexistence

No jumper wires needed. No idf.py menuconfig under menu "OpenThread RCP Update" configure to change.

Standalone Modules

The SDK also supports manually connecting an ESP32-H2 RCP to an ESP32 series Wi-Fi SoC. As one way of connection is following:

ESP32 pin	ESP32-H2 pin
GND	G
GPIO4 (RX)	TX
GPIO5 (TX)	RX
GPI017	RST
GPIO18	GPIO9(BOOT)

TX, RX, RST and BOOT pin from ESP32 side can be configured by user in idf.py menuconfig under menu "ESP Zigbee gateway rcp update".

TX, RX pins from ESP32-H2 should be configured in ot_rcp example via "OpenThread RCP Example > Configure RCP UART pin manually" options.

Other pin number is also available for user to configure if needed.

The following image shows an example connection between ESP32 DevKitC and ESP32-H2 DevKitC:

Erase the NVRAM

Before flash it to the board, it is recommended to erase NVRAM if user doesn't want to keep the previous examples or other projects stored info using idf.py -p PORT erase-flash

Create the RCP firmware image

The esp_zigbee_gateway supports updating the RCP image. Generate rcp image before building the esp_zigbee_gateway example.

Build the ot_rcp example. Later in the esp_zigbee_gateway building process, the built RCP image will be automatically packed into the esp_zigbee_gateway firmware. See detail in CMakeLists.txt.

Notes:

OPENTHREAD_NCP_VENDOR_HOOK of ot_rcp should be selected via menuconfig.

Build and Flash

Build the project, flash it to the board, and start the monitor tool to view the serial output by running idf.py -p PORT flash monitor

(To exit the serial monitor, type Ctrl-].)

Application Functions

When the program starts, the board will attempt to read the RCP version from the remote radio via UART.

I (433) main_task: Started on CPU0
I (443) main_task: Calling app_main()
I (453) ZIGBEE_GATEWAY: Start ESP Zigbee Stack
I (493) main_task: Returned from app_main()
I (503) RCP_UPDATE: RCP: using update sequence 0
I (503) ESP_RADIO_SPINEL: spinel UART interface initialization completed
I (503) ESP_RADIO_SPINEL: Spinel UART interface has been successfully enabled
I (503) ESP_ZIGBEE_RADIO_SPINEL_UART: Spinel UART interface enable successfully
I(513) OPENTHREAD:[I] P-SpinelDrive-: co-processor reset: RESET_POWER_ON
E(523) OPENTHREAD:[C] P-SpinelDrive-: Software reset co-processor successfully
I (573) ESP_ZIGBEE_RCP: Running RCP version: openthread-esp32/fcae32885b029-b945928d7; esp32h2;  2026-03-11 02:30:22 UTC

If CONFIG_AUTO_UPDATE_RCP is enabled and the version does not match the stored one, the board will automatically update the RCP using the stored version.
After confirming that the remote radio is functioning properly, the board will connect to Wi-Fi as configured in menuconfig.


I (573) example_connect: Start example_connect.
I (583) pp: pp rom version: e7ae62f
I (583) net80211: net80211 rom version: e7ae62f
I (593) wifi:wifi driver task: 3fcb86d0, prio:23, stack:6656, core=0
I (593) wifi:wifi firmware version: 14da9b7
I (593) wifi:wifi certification version: v7.0
I (603) wifi:config NVS flash: enabled
I (603) wifi:config nano formatting: disabled
I (603) wifi:Init data frame dynamic rx buffer num: 32
I (613) wifi:Init static rx mgmt buffer num: 5
I (613) wifi:Init management short buffer num: 32
I (623) wifi:Init dynamic tx buffer num: 32
I (623) wifi:Init static tx FG buffer num: 2
I (633) wifi:Init static rx buffer size: 1600
I (633) wifi:Init static rx buffer num: 10
I (633) wifi:Init dynamic rx buffer num: 32
I (643) wifi_init: rx ba win: 6
I (643) wifi_init: accept mbox: 6
I (643) wifi_init: tcpip mbox: 32
I (653) wifi_init: udp mbox: 6
I (653) wifi_init: tcp mbox: 6
I (653) wifi_init: tcp tx win: 5760
I (663) wifi_init: tcp rx win: 5760
I (663) wifi_init: tcp mss: 1440
I (663) wifi_init: WiFi IRAM OP enabled
I (673) wifi_init: WiFi RX IRAM OP enabled
I (673) phy_init: phy_version 701,f4f1da3a,Mar  3 2025,15:50:10
W (673) phy_init: failed to load RF calibration data (0x1102), falling back to full calibration
I (783) phy_init: Saving new calibration data due to checksum failure or outdated calibration data, mode(2)
I (793) wifi:mode : sta (48:27:e2:14:43:38)
I (793) wifi:enable tsf
I (793) example_connect: Connecting to esp-guest...
W (793) wifi:Password length matches WPA2 standards, authmode threshold changes from OPEN to WPA2
I (803) example_connect: Waiting for IP(s)
I (3293) wifi:new:<6,0>, old:<1,0>, ap:<255,255>, sta:<6,0>, prof:1, snd_ch_cfg:0x0
I (3303) wifi:state: init -> auth (0xb0)
I (3303) wifi:state: auth -> assoc (0x0)
I (3323) wifi:state: assoc -> run (0x10)
I (3413) wifi:connected with esp-guest, aid = 1, channel 6, BW20, bssid = 84:78:48:86:87:31
I (3423) wifi:security: WPA2-PSK, phy: bgn, rssi: -30
I (3423) wifi:pm start, type: 1

I (3423) wifi:dp: 1, bi: 102400, li: 3, scale listen interval from 307200 us to 307200 us
I (3433) wifi:set rx beacon pti, rx_bcn_pti: 0, bcn_timeout: 25000, mt_pti: 0, mt_time: 10000
I (3453) wifi:AP's beacon interval = 102400 us, DTIM period = 1
I (3503) wifi:<ba-add>idx:0 (ifx:0, 84:78:48:86:87:31), tid:0, ssn:0, winSize:64
I (4573) example_connect: Got IPv6 event: Interface "example_netif_sta" address: fe80:0000:0000:0000:4a27:e2ff:fe14:4338, type: ESP_IP6_ADDR_IS_LINK_LOCAL
I (4843) esp_netif_handlers: example_netif_sta ip: 10.18.40.174, mask: 255.255.255.0, gw: 10.18.40.1
I (4843) example_connect: Got IPv4 event: Interface "example_netif_sta" address: 10.18.40.174
I (4843) example_common: Connected to example_netif_sta
I (4853) example_common: - IPv4 address: 10.18.40.174,
I (4853) example_common: - IPv6 address: fe80:0000:0000:0000:4a27:e2ff:fe14:4338, type: ESP_IP6_ADDR_IS_LINK_LOCAL
I (4863) wifi:Set ps type: 0, coexist: 0

Finally, the board will act as the Zigbee Gateway, forming a network and handling commands from the network.

I (4883) ZIGBEE_GATEWAY: Initialize Zigbee stack
I (4883) ZIGBEE_GATEWAY: Deferred driver initialization successful
I (4883) ZIGBEE_GATEWAY: Device started up in factory-reset mode
I (5303) ZIGBEE_GATEWAY: Formed network successfully: PAN ID(0x4494, EXT: 0x6055f9fffef7a2ad), Channel(13), Short Address(0x0000)
I (5573) ZIGBEE_GATEWAY: Network(0x4494) is open for 180 seconds
I (5573) ZIGBEE_GATEWAY: Network steering completed

Gateway functionalities supporting Wi-Fi interaction will be added in future updates.

Troubleshooting

For any technical queries, please open an issue on GitHub. We will get back to you soon
